ANENG SZ304 Digital Multimeter AC/DC Voltmeter Ammeter Non-contact Voltage Detector Electric Current Tester Hz Diode Capacitor

Name: ANENG SZ304 Digital Multimeter AC/DC Voltmeter Ammeter Non-contact Voltage Detector Electric Current Tester Hz Diode Capacitor
SKU: 3256805571302609
Availability: InStock

$12.93

Color

Effacer

UGS : 3256805571302609 Catégorie : Daily use Spare Parts

Description
Avis (0)

Description:

Hign-concerned Chemical: None
Operating Mode: Auto/Manual Ranging
Measuring Capacitance Range: 0nF-20mF
Operating Temperature: 0 – 40 ℃
DIY Supplies: ELECTRICAL
Measuring Resistance Range: 0-200 MOhm
Certification: CE
Origin: Mainland China
Model Number: ANENG SZ304 Multimeter
Brand Name: ANENG
Dimensions: 188x91x38 mm
DC Current: 200uA-10A
AC Current: 200uA-10A
AC Voltage: 200mV-750V
DC Voltage: 200mV-1000V
Display Type: Digital display

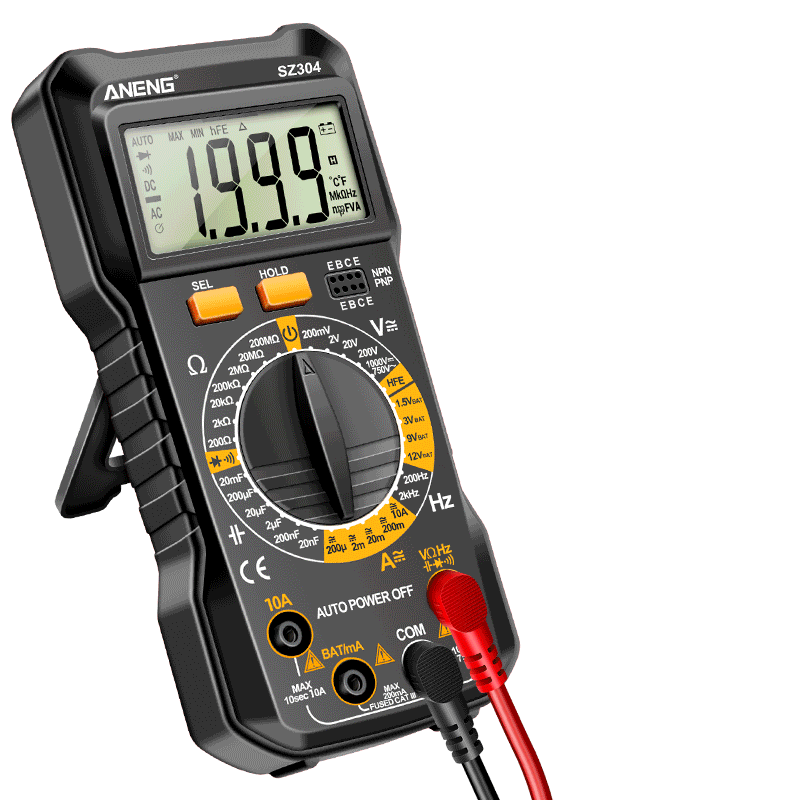

ANENG SZ304 Digital Multimeter

Describe :

SZ304 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and other functions.

Feature:

Model: SZ304
Function	Range	Resolving power	Accuracy
DC voltage	200mV-1000V	0.1mV-1V	±(1.5%+5d)
AC voltage	200mV-750V	0.1mV-1V	±(1.5%+10d)
DC current	200uA-10A	0.1uA-10mA	±(2.0%+10d)
AC current	200uA-10A	0.1uA-10mA	±(2.5%+10d)
Resistance	0Ω-200MΩ	0.1Ω-100kΩ	±(5.0%+ 10d)
Capacitance	0nF-20mF	0.01nF-10uF	±(6.0%+ 20d)
Hz frequency	0Hz-2kHz	0.1Hz-1Hz	±(1.5%+8d)
Diode	√	Data retention	√
Triode	√	Digital display screen	√
On/Off Beep	√	Automatic shutdown	√
Battery detection	1.5/3/9/12V	Tatal length of pen line	71cm
Material quality	ABS	Max count	2000 Counts
Weight	158g
